Parking Brake Shoe Adjustment

Special Tool(s): Brake Adjusting Gauge
206-D002 (D81L-1103-A) or equivalent

1) With the vehicle in NEUTRAL, position it on a hoist.

2) NOTE: Make sure the parking brake is fully released.
* Using the release handle, release the parking brake control.

3) Remove the rear brake disc. For additional information, refer to Section 206-04 .

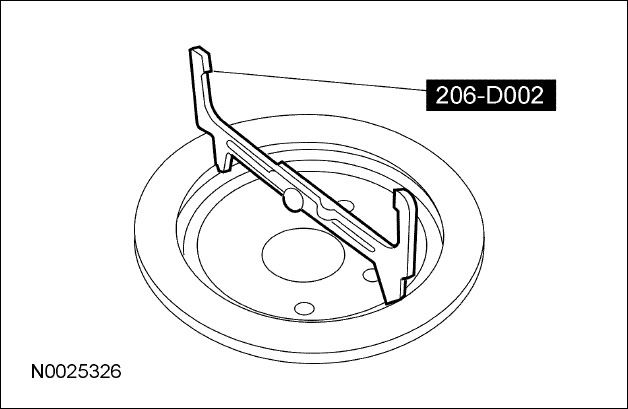

4) Using the special tool, measure the inside diameter of the drum portion of the rear brake disc and set the locking screw.
* Record the measurement.

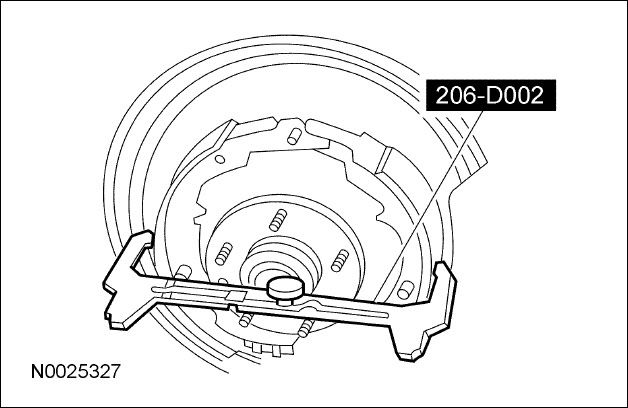

5) Place the special tool over the widest diameter of the parking brake shoes.



6) Adjust the parking brake shoe clearance to 1.07 mm (0.04 in) less than the inside diameter of the drum portion of the rear brake disc.
* Rotate the parking brake shoe adjuster to achieve the correct parking brake shoe-to-brake disc clearance.

7) Install the rear brake disc.

8) Test the parking brake for normal operation.
