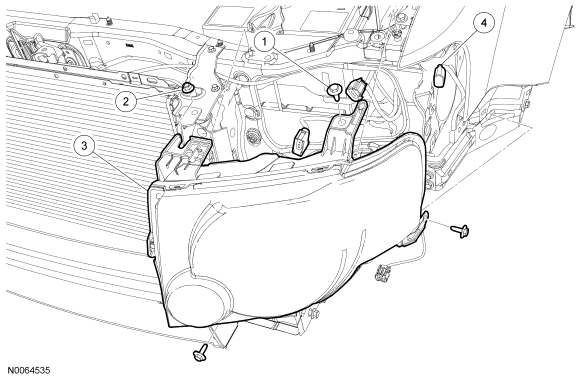

Item - Part Number - Description
1 - Headlamp assembly bolts (3 required)
2 - Headlamp assembly nut
3 - 13008 - Headlamp assembly
4 - Electrical connectors (part of 14290)
Removal and Installation
NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.
1) Remove the front bumper cover. See viewtopic.php?f=27&t=978
2) Remove the 3 headlamp assembly bolts.
* To install, tighten to 4.8 Nm (42 lb-in).
3) Remove the headlamp assembly nut and the headlamp assembly.
* Disconnect the electrical connectors.
* To install, tighten to 4.8 Nm (42 lb-in).
4) To install, reverse the removal procedure.
